Tissue Processing Manufactured in-house

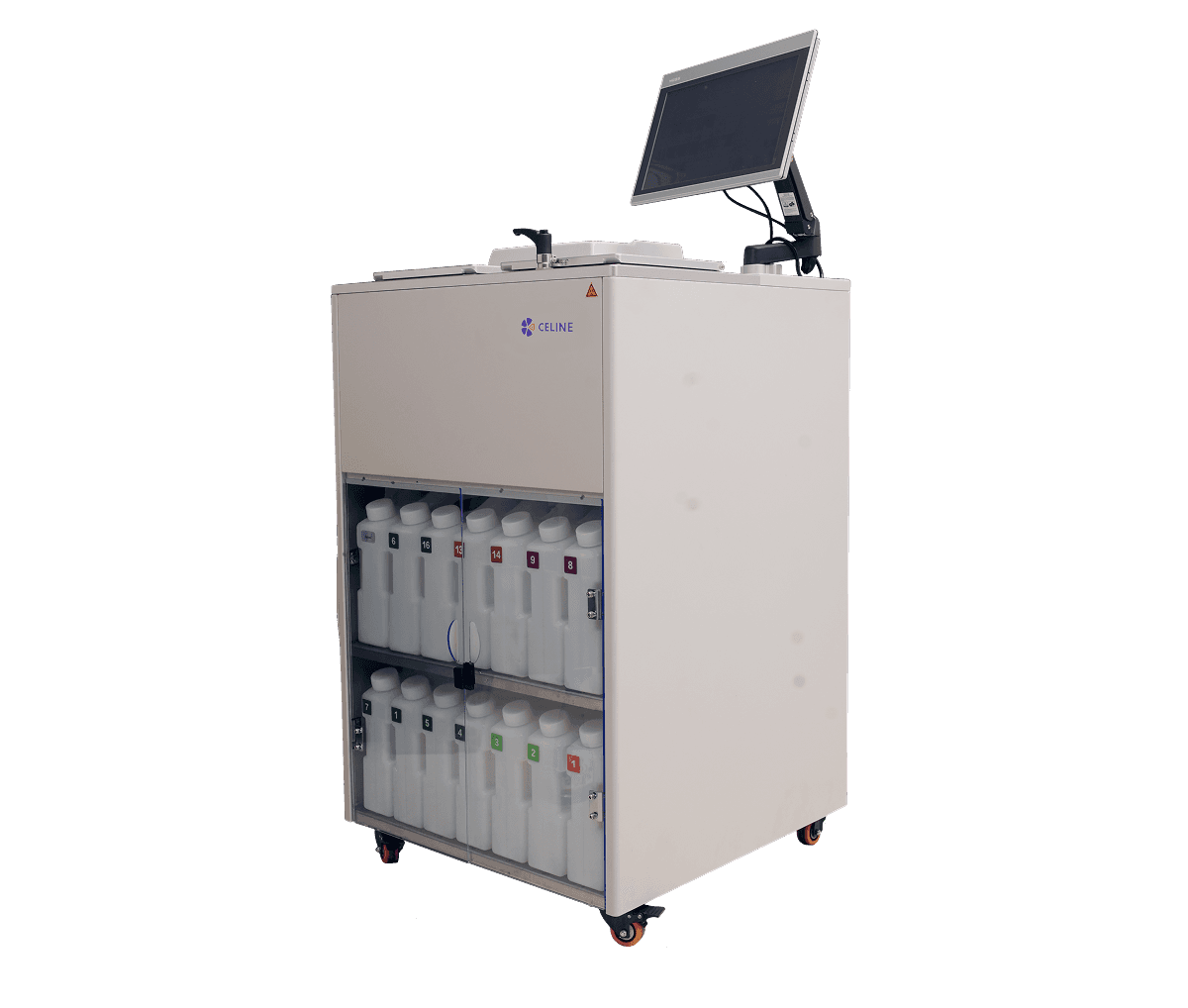

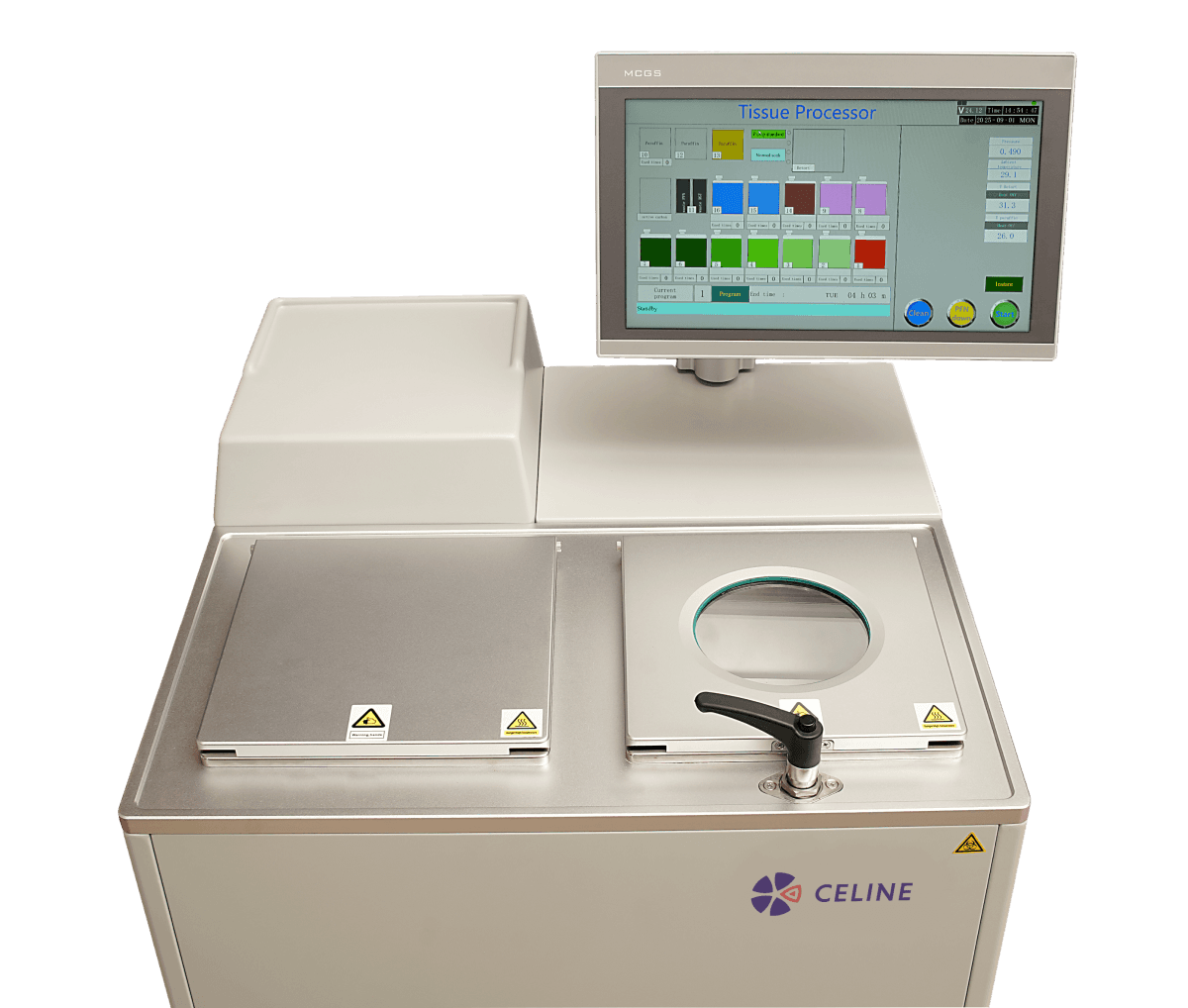

Protean Vertical Tissue Processor
Vertical Tissue Processor Key Features
Technical Specifications
Processing Capacity
Up to 300 standard tissue cassettes
Reagent System
13 reagent containers (3 cleaning, 3 paraffin)
Wax Bath Temperature
Programmable 40-65°C in 1°C increments (3.3 L)
Retort Temperature
Programmable ambient to 55°C in 1°C increments, up to 65°C for wax
Impregnation Vacuum
-60 kPa; Pressure: +35 kPa
Cycle Control
Fluid recirculation (12 min first cycle, 20 min between cycles)
Filling / Draining
Fill 60 sec; programmable drain 80/120 sec
Safety Sensors
Optical sensors for reagent and wax levels
Operating Modes
Ambient, vacuum, pressure, pressure/vacuum
Display
Large colour LCD touchscreen
Power Supply
220 V / 50 Hz
Enquire about this product
Get pricing, technical specs, or schedule a call with our applications team.
Request Quote Contact on WhatsAppApplications
High-volume histopathology
Reference laboratories
Enclosed solvent processing
Overnight processing
Certifications
ISO 13485CDSCOIEC
